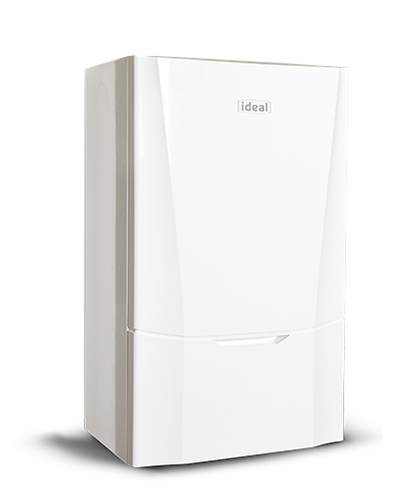

Vogue Gen2 Combi

Water

Heating

Home Products

Choose the content that is relevant to you:

Homeowners

Installers

Product Specification

VOGUE GEN2 COMBI

	COMBI C26	COMBI C32	COMBI C40
Weight (packaged) kg	37.6	38.9	40.9
Max installation weight kg	32.4	33.8	35.4
CH output (kW) min/max @ 70°C	3.7 - 18.0	4.6 - 26.0	5.7 - 32.0
CH output (kW) min/max @ 40°C	4.0 - 19.3	4.9 - 27.9	6.1 - 34.3
DHW output (kW) max	26	32	40
DHW flow rate I/min. 35°C rise	10.6	13.1	16.4
SEDBUK rating (2005) %	91	91.1	91
SEDBUK rating (2009/2012) %	89.1	89.2	89.1
NOx classification	CLASS 6	CLASS 6	CLASS 6
Convertible to LPG	Yes	Yes	Yes
Max horizontal flue	10m	8m	8m
Max vertical flue	10m	10m	10m
Condensing boiler	Yes	Yes	Yes
Seasonal space heating energy efficiency ŋs%	92.7	Yes	93
Sound powr level, indoors Lwa dB	47	50	49
Water heating energy efficiency class		A	A

COMBI C26

COMBI C32

COMBI C40

Weight (packaged) kg

37.6

38.9

40.9

Max installation weight kg

32.4

33.8

35.4

CH output (kW) min/max @ 70°C

3.7 - 18.0

4.6 - 26.0

5.7 - 32.0

CH output (kW) min/max @ 40°C

4.0 - 19.3

4.9 - 27.9

6.1 - 34.3

DHW output (kW) max

DHW flow rate I/min. 35°C rise

10.6

13.1

16.4

SEDBUK rating (2005) %

91.1

SEDBUK rating (2009/2012) %

89.1

89.2

89.1

NOx classification

CLASS 6

Convertible to LPG

Yes

Max horizontal flue

10m

Max vertical flue

10m

Condensing boiler

Yes

Seasonal space heating energy efficiency ŋs%

92.7

Yes

Sound powr level, indoors Lwa dB

Water heating energy efficiency class

Documents and resources for Homeowners

Need help with your product or control? Download our guides for more technical information on your product.

User Guides

Vogue Gen2 Combi Boiler User Guide

Installation & Servicing

Vogue Gen2 Combi Boiler Installation & Servicing Guide

ERP Labels

T&Cs

Standard warranty terms

Product Specification

VOGUE GEN2 COMBI

	COMBI C26	COMBI C32	COMBI C40
Weight (packaged) kg	37.6	38.9	40.9
Max installation weight kg	32.4	33.8	35.4
CH output (kW) min/max @ 70°C	3.7 - 18.0	4.6 - 26.0	5.7 - 32.0
CH output (kW) min/max @ 40°C	4.0 - 19.3	4.9 - 27.9	6.1 - 34.3
DHW output (kW) max	26	32	40
DHW flow rate I/min. 35°C rise	10.6	13.1	16.4
SEDBUK rating (2005) %	91	91.1	91
SEDBUK rating (2009/2012) %	89.1	89.2	89.1
NOx classification	CLASS 6	CLASS 6	CLASS 6
Convertible to LPG	Yes	Yes	Yes
Max horizontal flue	10m	8m	8m
Max vertical flue	10m	10m	10m
Condensing boiler	Yes	Yes	Yes
Seasonal space heating energy efficiency ŋs%	92.7	Yes	93
Sound powr level, indoors Lwa dB	47	50	49
Water heating energy efficiency class		A	A

COMBI C26

COMBI C32

COMBI C40

Weight (packaged) kg

37.6

38.9

40.9

Max installation weight kg

32.4

33.8

35.4

CH output (kW) min/max @ 70°C

3.7 - 18.0

4.6 - 26.0

5.7 - 32.0

CH output (kW) min/max @ 40°C

4.0 - 19.3

4.9 - 27.9

6.1 - 34.3

DHW output (kW) max

DHW flow rate I/min. 35°C rise

10.6

13.1

16.4

SEDBUK rating (2005) %

91.1

SEDBUK rating (2009/2012) %

89.1

89.2

89.1

NOx classification

CLASS 6

Convertible to LPG

Yes

Max horizontal flue

10m

Max vertical flue

10m

Condensing boiler

Yes

Seasonal space heating energy efficiency ŋs%

92.7

Yes

Sound powr level, indoors Lwa dB

Water heating energy efficiency class

Documents and resources for Installers

Need help with your product or control? Download our guides for more technical information on your product.

User Guides

Vogue Gen2 Combi Boiler User Guide

Installation & Servicing

Vogue Gen2 Combi Boiler Installation & Servicing Guide

ERP Labels

T&Cs

Standard warranty terms
