Choose the content that is relevant to you:
Description

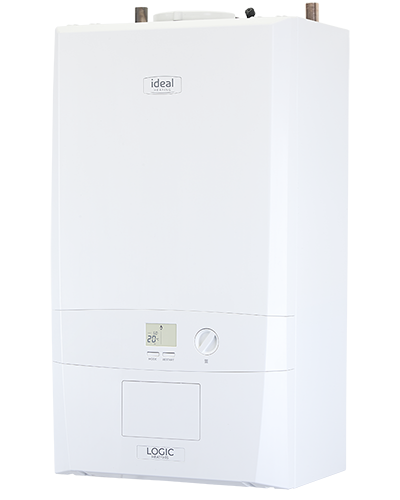

Our new Logic Heat boilers are a compact heat only solution for use in social housing. Quick and easy to install, Logic Heat boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 12, 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
Features
- Flexible warranty options*
- LPG conversion available
- Six optional language user instructors
- Compact cupboard fit
- Built in frost protection
- Integrate connectivity to enable remote monitoring using Link Cellular
- Large high-resolution screen
- Compatible with the Halo thermostat range
- Three different service length options available up to 61 weeks
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
LOGIC HEAT
Logic Heat Models
| 12
| 15
| 18
| 24
| 30
|
---|---|---|---|---|---|
Weight (packaged) kg
| 27
| 27
| 27
| 27 | 27 |
Max installation weight kg
| 21.9
| 21.9
| 21.9
| 21.9
| 21.9
|
CH Output(kW) min /max mean 70°C
| 4.8-12.0
| 4.8-15.0
| 4.8-18.0
| 4.8-24.2
| 6.1-30.3
|
CH Output(kW) min /max mean 40°C
| 5.1-13.0
| 5.1-15.9
| 5.1-19.1
| 5.1-25.6
| 6.4-31.0
|
SEDBUK rating (2005)%
| 91.1
| 91.2
| 91.1 | 91.2
| 91.1
|
SEDBUK rating (2009/2012)%
| 89.4
| 89.4
| 89.7
| 89.7
| 89.6
|
NOx Classification
| Class 6
| Class 6
| Class 6
| Class 6
| Class 6
|
LPG conversion
| No | No
| Yes | Yes
| Yes
|
Max Horizontal flue
| 9m
| 9m
| 9m
| 9m
| 9m |
Max Vertical flue
| 7.7m
| 7.5m | 7.5m
| 7.5m
| 7.5m |
Seasonal space heating efficiency class
| A
| A
| A
| A
| A
|
Seasonal space heating energy efficiency µs %
| 93 | 93
| 94
| 94
| 93
|
Sound power level indoors LWA Db
| 36
| 42 | 44 | 50
| 50 |
Sound power level indoors LWA dB(A)
| 36
| 38
| 41
| 47
| 49 |
Our new Logic Heat boilers are a compact heat only solution for use in social housing. Quick and easy to install, Logic Heat boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 12, 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
Documents and resources for New Build
Need help with your boiler or control? Download our guides for more technical information on your boiler.
User Guides
Installation & Servicing
Spec Sheets
ERP Labels
T&Cs
Description
Our new Logic Heat boilers are a compact heat only solution for use in social housing. Quick and easy to install, Logic Heat boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 12, 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
Features
- Flexible warranty options*
- LPG conversion available
- Six optional language user instructors
- Compact cupboard fit
- Built in frost protection
- Integrate connectivity to enable remote monitoring using Link Cellular
- Large high-resolution screen
- Compatible with the Halo thermostat range
- Three different service length options available up to 61 weeks
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
LOGIC HEAT
Logic Heat Models
| 12
| 15
| 18
| 24
| 30
|
---|---|---|---|---|---|
Weight (packaged) kg
| 27
| 27
| 27
| 27 | 27 |
Max installation weight kg
| 21.9
| 21.9
| 21.9
| 21.9
| 21.9
|
CH Output(kW) min /max mean 70°C
| 4.8-12.0
| 4.8-15.0
| 4.8-18.0
| 4.8-24.2
| 6.1-30.3
|
CH Output(kW) min /max mean 40°C
| 5.1-13.0
| 5.1-15.9
| 5.1-19.1
| 5.1-25.6
| 6.4-31.0
|
SEDBUK rating (2005)%
| 91.1
| 91.2
| 91.1 | 91.2
| 91.1
|
SEDBUK rating (2009/2012)%
| 89.4
| 89.4
| 89.7
| 89.7
| 89.6
|
NOx Classification
| Class 6
| Class 6
| Class 6
| Class 6
| Class 6
|
LPG conversion
| No | No
| Yes | Yes
| Yes
|
Max Horizontal flue
| 9m
| 9m
| 9m
| 9m
| 9m |
Max Vertical flue
| 7.7m
| 7.5m | 7.5m
| 7.5m
| 7.5m |
Seasonal space heating efficiency class
| A
| A
| A
| A
| A
|
Seasonal space heating energy efficiency µs %
| 93 | 93
| 94
| 94
| 93
|
Sound power level indoors LWA Db
| 36
| 42 | 44 | 50
| 50 |
Sound power level indoors LWA dB(A)
| 36
| 38
| 41
| 47
| 49 |
Our new Logic Heat boilers are a compact heat only solution for use in social housing. Quick and easy to install, Logic Heat boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 12, 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
