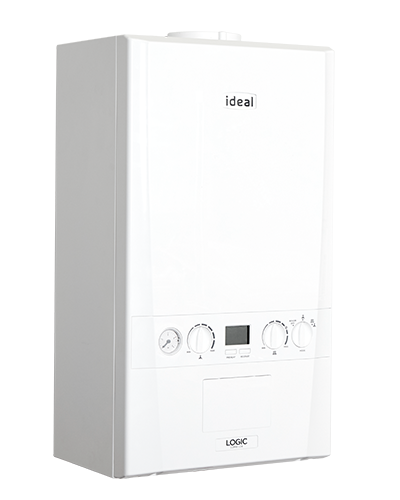

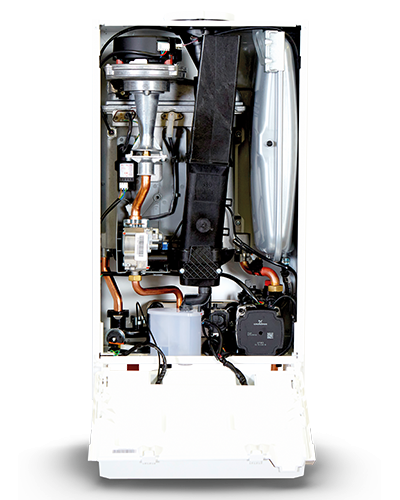

Logic Combi ESP1
![](https://images.ctfassets.net/sj902orc9wh4/uDRzW9iarV204D0OQ3wTO/5cf13719c747d7b72566f34723abc716/Logic_Combi_Internal.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/1BSPf4ewokcahRN5PQnJoY/453e4f323027fd615e9ba9f6c24fe479/Logic_Combi_Front_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/2QOMVsOVvjFe1cIbim6Yl3/d029755ccb9f11e66b433594996ed76d/Logic_Combi_Right_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/uDRzW9iarV204D0OQ3wTO/5cf13719c747d7b72566f34723abc716/Logic_Combi_Internal.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/1BSPf4ewokcahRN5PQnJoY/453e4f323027fd615e9ba9f6c24fe479/Logic_Combi_Front_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/uDRzW9iarV204D0OQ3wTO/5cf13719c747d7b72566f34723abc716/Logic_Combi_Internal.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/1BSPf4ewokcahRN5PQnJoY/453e4f323027fd615e9ba9f6c24fe479/Logic_Combi_Front_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/2QOMVsOVvjFe1cIbim6Yl3/d029755ccb9f11e66b433594996ed76d/Logic_Combi_Right_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/uDRzW9iarV204D0OQ3wTO/5cf13719c747d7b72566f34723abc716/Logic_Combi_Internal.png?w=400&h=500&q=50&fm=png&bg=transparent)
![](https://images.ctfassets.net/sj902orc9wh4/1BSPf4ewokcahRN5PQnJoY/453e4f323027fd615e9ba9f6c24fe479/Logic_Combi_Front_Facing.png?w=400&h=500&q=50&fm=png&bg=transparent)
Choose the content that is relevant to you:
Description
Optimised for new build compliance, our Logic Combi ESP1 boilers deliver optimal SAP and DER performance. Lightweight and boasting a compact fit, these models are easy to install and Energy Saving Trust endorsed. Available in a choice of three outputs of 24, 30 and 35kw, the Logic Combi ESP1 central heating system is compatible with a wide range of optional timers, providing the ultimate in control and peace of mind.
Features
- Flexible warranty options
- Low lift weight (starting from 28.9kg)
- Wide range of additional flueing options
- LPG conversion available
- Energy Saving Trust endorsed
- Automatic bypass
- Built-in, easy to use filling loop
- Preformed copper tails and pre-wired mains lead
- Achieves optium SAP and DER ratings for standard combination boiler usage
- Compact cupboard fit
- Easy to see pressure gauge
- Large back-lit display
- Fully modulating operation to low outputs
- Boiler frost protection
- Simple diverter valve design
- Universal condensate connection
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
LOGIC COMBI ESP1
BOILER MODEL
| 24
| 30
| 35
|
---|---|---|---|
Weight (packaged) kg
| 33.7
| 33.8 | 33.9
|
Max installation weight kg
| 28.9
| 29.0 | 29.1
|
CH Output (kW) min/max mean 70°C
| 4.8 - 24.2
| 6.1 - 24.2
| 7.1 - 24.2
|
CH Output (kW) min/max mean 40°C
| 5.1 - 25.6
| 6.4 - 25.6
| 7.5 - 25.6
|
DHW output (kW) max
| 24.2
| 30.3 | 35.3
|
SEDBUK rating (2005) %
| 91.1 | 91.1
| 91.1 |
SEDBUK rating (2009/2012) %
| 89.6
| 89.6
| 89.6
|
NOx classification
| CLASS 6
| CLASS 6
| CLASS 6
|
Convert to LPG
| No | Yes | Yes
|
Max horizontal flue*
| 9m | 9m
| 9m
|
Max vertical flue*
| 7.5m
| 7.5m
| 7.5m
|
Powered vertical flue*
| 22m
| 22m
| 22m
|
Condensing boiler
| Yes
| Yes | Yes
|
Seasonal space heating efficiency class
| A
| A
| A
|
Rated heat output kW
| 24
| 24
| 24
|
Seasonal space heating energy efficiency ŋs %
| 94
| 94
| 94
|
Sound power level, indoors LWA dB
| 48
| 46
| 44
|
Water heating energy efficiency class
| A
| A | A
|
PCDB Numbers - Natural Gas
| 017955
| 017956
| 017929
|
PCDB Numbers - Propane (Conversion Kit)
| 018067
| 018060 |
Optimised for new build compliance, our Logic Combi ESP1 boilers deliver optimal SAP and DER performance. Lightweight and boasting a compact fit, these models are easy to install and Energy Saving Trust endorsed. Available in a choice of three outputs of 24, 30 and 35kw, the Logic Combi ESP1 central heating system is compatible with a wide range of optional timers, providing the ultimate in control and peace of mind.
Documents and resources for New Build
Need help with your boiler or control? Download our guides for more technical information on your boiler.
Installation & Servicing
Spec Sheets
ERP Labels
T&Cs
Description
Optimised for new build compliance, our Logic Combi ESP1 boilers deliver optimal SAP and DER performance. Lightweight and boasting a compact fit, these models are easy to install and Energy Saving Trust endorsed. Available in a choice of three outputs of 24, 30 and 35kw, the Logic Combi ESP1 central heating system is compatible with a wide range of optional timers, providing the ultimate in control and peace of mind.
Features
- Flexible warranty options
- Low lift weight (starting from 28.9kg)
- Wide range of additional flueing options
- LPG conversion available
- Energy Saving Trust endorsed
- Automatic bypass
- Built-in, easy to use filling loop
- Preformed copper tails and pre-wired mains lead
- Achieves optium SAP and DER ratings for standard combination boiler usage
- Compact cupboard fit
- Easy to see pressure gauge
- Large back-lit display
- Fully modulating operation to low outputs
- Boiler frost protection
- Simple diverter valve design
- Universal condensate connection
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
LOGIC COMBI ESP1
BOILER MODEL
| 24
| 30
| 35
|
---|---|---|---|
Weight (packaged) kg
| 33.7
| 33.8 | 33.9
|
Max installation weight kg
| 28.9
| 29.0 | 29.1
|
CH Output (kW) min/max mean 70°C
| 4.8 - 24.2
| 6.1 - 24.2
| 7.1 - 24.2
|
CH Output (kW) min/max mean 40°C
| 5.1 - 25.6
| 6.4 - 25.6
| 7.5 - 25.6
|
DHW output (kW) max
| 24.2
| 30.3 | 35.3
|
SEDBUK rating (2005) %
| 91.1 | 91.1
| 91.1 |
SEDBUK rating (2009/2012) %
| 89.6
| 89.6
| 89.6
|
NOx classification
| CLASS 6
| CLASS 6
| CLASS 6
|
Convert to LPG
| No | Yes | Yes
|
Max horizontal flue*
| 9m | 9m
| 9m
|
Max vertical flue*
| 7.5m
| 7.5m
| 7.5m
|
Powered vertical flue*
| 22m
| 22m
| 22m
|
Condensing boiler
| Yes
| Yes | Yes
|
Seasonal space heating efficiency class
| A
| A
| A
|
Rated heat output kW
| 24
| 24
| 24
|
Seasonal space heating energy efficiency ŋs %
| 94
| 94
| 94
|
Sound power level, indoors LWA dB
| 48
| 46
| 44
|
Water heating energy efficiency class
| A
| A | A
|
PCDB Numbers - Natural Gas
| 017955
| 017956
| 017929
|
PCDB Numbers - Propane (Conversion Kit)
| 018067
| 018060 |
Optimised for new build compliance, our Logic Combi ESP1 boilers deliver optimal SAP and DER performance. Lightweight and boasting a compact fit, these models are easy to install and Energy Saving Trust endorsed. Available in a choice of three outputs of 24, 30 and 35kw, the Logic Combi ESP1 central heating system is compatible with a wide range of optional timers, providing the ultimate in control and peace of mind.
Documents and resources for Social Housing
Need help with your boiler or control? Download our guides for more technical information on your boiler.
