Logic Air Hybrid Heat Pump






Choose the content that is relevant to you:
Description

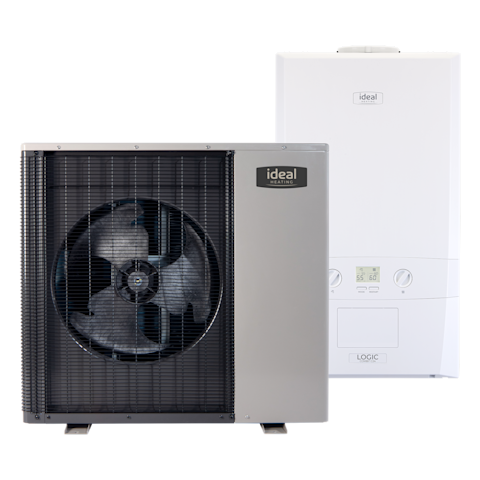

The Logic Air Hybrid system seamlessly combines our industry-leading gas boiler range with the Logic Air monobloc air source heat pump. Designed for UK homes, this innovative system is managed by the Logic Air Control Box, delivering efficient, cost-effective heating and instant hot water while optimising energy usage.
Features
- Integrated controller within the heat pump
- Tariff or bivalent control strategy
- Integration with Combi, System or Heat only controls
- Quiet Mark
- UK wide engineer coverage
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
Logic Air Hybrid
Logic Air 4kW
Logic Air 5kW
Logic Air 8kW
Logic Air 10kW
Ideal Product Code
AH750664
AH750665
AH750666
AH750667
Heating [A 7°C / W 35°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
0.75
0.97
1.58
2.1
COP
5.34
5
5.19
4.9
Heating [A 7°C / W 55°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
1.33
1.64
2.67
3.42
COP
3
3.04
3.07
3.01
Sound Power Level (EN 12102 - 1)
dB(A)
52
52
55
55
Pipework Connection Sizes
Heating F/R
1" BSP
1" BSP
1" BSP
1" BSP
Dimensions Outdoor Unit (mm)
Width
1095
1095
1095
1095
Depth
518
518
518
518
Height
798
798
1008
1008
Volume (m3)
0.45
0.45
0.57
0.57
Weight (kg)
86
86
110
110
Electrical Data
Electrical Supply (50 Hz)
230v
230v
230v
230v
Phase
Single Phase
Single Phase
Single Phase
Single Phase
Refrigerant Charge (kg)*
R32
0.88
0.88
1.47
1.47
Logic Combi2
Product Code (C24/C30)
228307/228308
Max CH Output (C24/C30)
24.2/24.2
Min CH Output (C24/C30)
4.8/6.1
DHW Output (C24/C30)
24.2/30.2
SSHEE (C24/C30)
94/94
Boiler Dimensions (mm)
Width
395
Depth
278
Height
700
Hybrid Control
Strategy
Bivalent Point/Tariff
System Master
Heat Pump
Documents and resources for Homeowners
Need help with your product or control? Download our guides for more technical information on your product.
Sales Brochure
Description
The Logic Air Hybrid system integrates our industry-leading gas boiler range with the Logic Air monobloc air source heat pump, providing installers with a reliable and efficient low-carbon heating solution. Controlled by the Logic Air Control Box, it offers seamless bivalent control, delivering cost-effective heating and instant hot water while optimising system performance.
Features
- Integrated controller within the heat pump
- Tariff or bivalent control strategy
- Integration with Combi, System or Heat only controls
- No hydraulic separation required
- Quiet Mark
- Easy to install
- Boilers designed for UK homes
- Flexible warranties
- UK wide engineer coverage
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
Logic Air Hybrid
Logic Air 4kW
Logic Air 5kW
Logic Air 8kW
Logic Air 10kW
Ideal Product Code
AH750664
AH750665
AH750666
AH750667
Heating [A 7°C / W 35°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
0.75
0.97
1.58
2.1
COP
5.34
5
5.19
4.9
Heating [A 7°C / W 55°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
1.33
1.64
2.67
3.42
COP
3
3.04
3.07
3.01
Sound Power Level (EN 12102 - 1)
dB(A)
52
52
55
55
Pipework Connection Sizes
Heating F/R
1" BSP
1" BSP
1" BSP
1" BSP
Dimensions Outdoor Unit (mm)
Width
1095
1095
1095
1095
Depth
518
518
518
518
Height
798
798
1008
1008
Volume (m3)
0.45
0.45
0.57
0.57
Weight (kg)
86
86
110
110
Electrical Data
Electrical Supply (50 Hz)
230v
230v
230v
230v
Phase
Single Phase
Single Phase
Single Phase
Single Phase
Refrigerant Charge (kg)*
R32
0.88
0.88
1.47
1.47
Logic Combi2
Product Code (C24/C30)
228307/228308
Max CH Output (C24/C30)
24.2/24.2
Min CH Output (C24/C30)
4.8/6.1
DHW Output (C24/C30)
24.2/30.2
SSHEE (C24/C30)
94/94
Boiler Dimensions (mm)
Width
395
Depth
278
Height
700
Hybrid Control
Strategy
Bivalent Point/Tariff
System Master
Heat Pump
Documents and resources for Installers
Need help with your product or control? Download our guides for more technical information on your product.
Sales Brochure
Description
The Logic Air Hybrid system offers a future-proof heating solution by combining our market-leading gas boiler range with the high-performance Logic Air monobloc air source heat pump. Controlled by the Logic Air Control Box, it delivers seamless bivalent control, ensuring energy-efficient, cost-effective heating and instant hot water, helping developments meet sustainability targets and regulatory requirements.
Features
- Integrated controller within the heat pump
- Tariff or bivalent control strategy
- Integration with Combi, System or Heat only controls
- No hydraulic separation required
- Quiet Mark
- Easy to install
- Flexible warranties
- UK wide engineer coverage
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
Logic Air Hybrid
Logic Air 4kW
Logic Air 5kW
Logic Air 8kW
Logic Air 10kW
Ideal Product Code
AH750664
AH750665
AH750666
AH750667
Heating [A 7°C / W 35°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
0.75
0.97
1.58
2.1
COP
5.34
5
5.19
4.9
Heating [A 7°C / W 55°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
1.33
1.64
2.67
3.42
COP
3
3.04
3.07
3.01
Sound Power Level (EN 12102 - 1)
dB(A)
52
52
55
55
Pipework Connection Sizes
Heating F/R
1" BSP
1" BSP
1" BSP
1" BSP
Dimensions Outdoor Unit (mm)
Width
1095
1095
1095
1095
Depth
518
518
518
518
Height
798
798
1008
1008
Volume (m3)
0.45
0.45
0.57
0.57
Weight (kg)
86
86
110
110
Electrical Data
Electrical Supply (50 Hz)
230v
230v
230v
230v
Phase
Single Phase
Single Phase
Single Phase
Single Phase
Refrigerant Charge (kg)*
R32
0.88
0.88
1.47
1.47
Logic Combi2
Product Code (C24/C30)
228307/228308
Max CH Output (C24/C30)
24.2/24.2
Min CH Output (C24/C30)
4.8/6.1
DHW Output (C24/C30)
24.2/30.2
SSHEE (C24/C30)
94/94
Boiler Dimensions (mm)
Width
395
Depth
278
Height
700
Hybrid Control
Strategy
Bivalent Point/Tariff
System Master
Heat Pump
Documents and resources for New Build
Need help with your product or control? Download our guides for more technical information on your product.
Sales Brochure
Description
The Logic Air Hybrid system combines our market-leading gas boiler range with the high-performance Logic Air monobloc air source heat pump, providing an energy-efficient, low-carbon heating solution for social housing. Managed by the Logic Air Control Box, it ensures seamless bivalent control, delivering reliable, cost-effective heating and instant hot water, helping to reduce energy costs and support sustainability targets.
Features
- Integrated controller within the heat pump
- Tariff or bivalent control strategy
- Integration with Combi, System or Heat only controls
- No hydraulic separation required
- Quiet Mark
- Easy to install
- Flexible warranties
- UK wide engineer coverage
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
Logic Air Hybrid
Logic Air 4kW
Logic Air 5kW
Logic Air 8kW
Logic Air 10kW
Ideal Product Code
AH750664
AH750665
AH750666
AH750667
Heating [A 7°C / W 35°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
0.75
0.97
1.58
2.1
COP
5.34
5
5.19
4.9
Heating [A 7°C / W 55°C]*
Capacity (kW)
4
5
8.2
10.3
Power Input (kW)
1.33
1.64
2.67
3.42
COP
3
3.04
3.07
3.01
Sound Power Level (EN 12102 - 1)
dB(A)
52
52
55
55
Pipework Connection Sizes
Heating F/R
1" BSP
1" BSP
1" BSP
1" BSP
Dimensions Outdoor Unit (mm)
Width
1095
1095
1095
1095
Depth
518
518
518
518
Height
798
798
1008
1008
Volume (m3)
0.45
0.45
0.57
0.57
Weight (kg)
86
86
110
110
Electrical Data
Electrical Supply (50 Hz)
230v
230v
230v
230v
Phase
Single Phase
Single Phase
Single Phase
Single Phase
Refrigerant Charge (kg)*
R32
0.88
0.88
1.47
1.47
Logic Combi2
Product Code (C24/C30)
228307/228308
Max CH Output (C24/C30)
24.2/24.2
Min CH Output (C24/C30)
4.8/6.1
DHW Output (C24/C30)
24.2/30.2
SSHEE (C24/C30)
94/94
Boiler Dimensions (mm)
Width
395
Depth
278
Height
700
Hybrid Control
Strategy
Bivalent Point/Tariff
System Master
Heat Pump
Documents and resources for Social Housing
Need help with your product or control? Download our guides for more technical information on your product.
