Logic System
Choose the content that is relevant to you:
Description

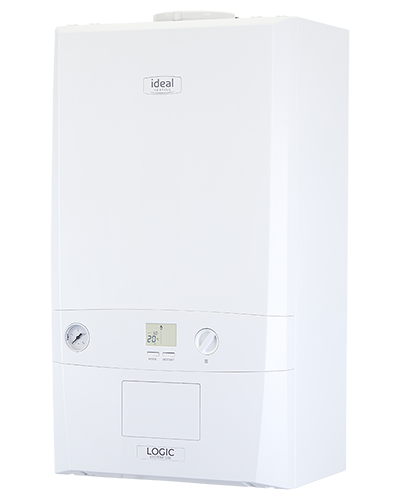

Our new Logic System boilers are quick and easy to install. Logic System boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
Features
- Flexible warranty options
- Integrate connectivity to enable remote monitoring using Link Cellular
- LPG conversion available
- Six optional language user instructions
- Compact cupboard fit
- Green filling loop handle to support tenant self-management for re-pressurising their systems
- Three different service length options available up to 61 weeks
- Large high-resolution screen
- Compatible with the Halo thermostat range
- Preformed copper tails with push-fit pressure relief valve (PRV) connection for quick and easy installation
- Easy access to the pressure relief valve
- Built in frost protection
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
LOGIC SYSTEM
Logic System Models
15
18
24
30
Weight (Packaged) k
31.3
31.3
31.3
31.3
Max Installation weight kg
27.3
27.3
27.3
27.3
CH Output(kW) min /max mean 70°C
4.8-15.0
4.8-18.0
4.8-24.2
6.1-30.3
CH Output(kW) min /max mean 40°C
5.1-15.9
5.1-19.1
5.1-25.6
6.4-31.0
SEDBUK rating (2005)%
91.2
91.1
91.2
91.1
SEDBUK rating (2009/2012)%
89.4
89.7
89.7
89.6
NOx Classification
Class 6
Class 6
Class 6
Class 6
LPG conversion
No
Yes
NO
Yes
Max Horizontal flue
9m
9m
9m
9m
Max Vertical flue
7.7m
7.5m
7.5m
7.5m
Seasonal space heating efficiency class
A
A
A
A
Seasonal space heating energy efficiency µs %
93
93
94
93
Sound power level indoors LWA dB(A)
42
44
50
50
Documents and resources for New Build
Need help with your boiler or control? Download our guides for more technical information on your boiler.
User Guides
Installation & Servicing
Spec Sheets
ERP Labels
T&Cs
Description

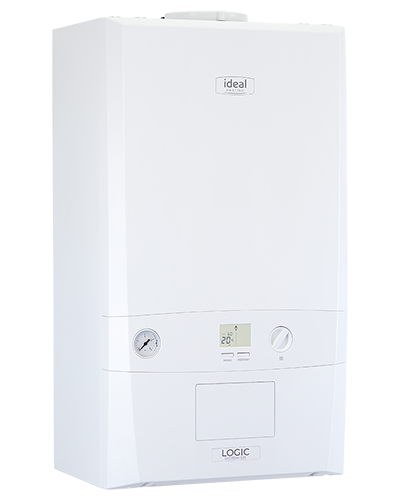

Our new Logic System boilers are quick and easy to install. Logic System boilers are fully ErP compliant, compatible with other green heating technologies and a range of additional controls including our Halo range of programmable room thermostats. Available in outputs of 15, 18, 24 and 30kW. This evolution retains everything you love about the current Logic, but with a range of new features and components that make it even easier for your engineers to install, service and maintain. Integrate Logic with Link Cellular our remote boiler monitoring solution for greater control of your maintenance costs, compliance and tenant welfare.
Features
- Flexible warranty options
- Integrate connectivity to enable remote monitoring using Link Cellular
- LPG conversion available
- Six optional language user instructions
- Compact cupboard fit
- Green filling loop handle to support tenant self-management for re-pressurising their systems
- Three different service length options available up to 61 weeks
- Large high-resolution screen
- Compatible with the Halo thermostat range
- Preformed copper tails with push-fit pressure relief valve (PRV) connection for quick and easy installation
- Easy access to the pressure relief valve
- Built in frost protection
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
- Product Information
LOGIC SYSTEM
Logic System Models
15
18
24
30
Weight (Packaged) k
31.3
31.3
31.3
31.3
Max Installation weight kg
27.3
27.3
27.3
27.3
CH Output(kW) min /max mean 70°C
4.8-15.0
4.8-18.0
4.8-24.2
6.1-30.3
CH Output(kW) min /max mean 40°C
5.1-15.9
5.1-19.1
5.1-25.6
6.4-31.0
SEDBUK rating (2005)%
91.2
91.1
91.2
91.1
SEDBUK rating (2009/2012)%
89.4
89.7
89.7
89.6
NOx Classification
Class 6
Class 6
Class 6
Class 6
LPG conversion
No
Yes
NO
Yes
Max Horizontal flue
9m
9m
9m
9m
Max Vertical flue
7.7m
7.5m
7.5m
7.5m
Seasonal space heating efficiency class
A
A
A
A
Seasonal space heating energy efficiency µs %
93
93
94
93
Sound power level indoors LWA dB(A)
42
44
50
50
Documents and resources for Social Housing
Need help with your boiler or control? Download our guides for more technical information on your boiler.
