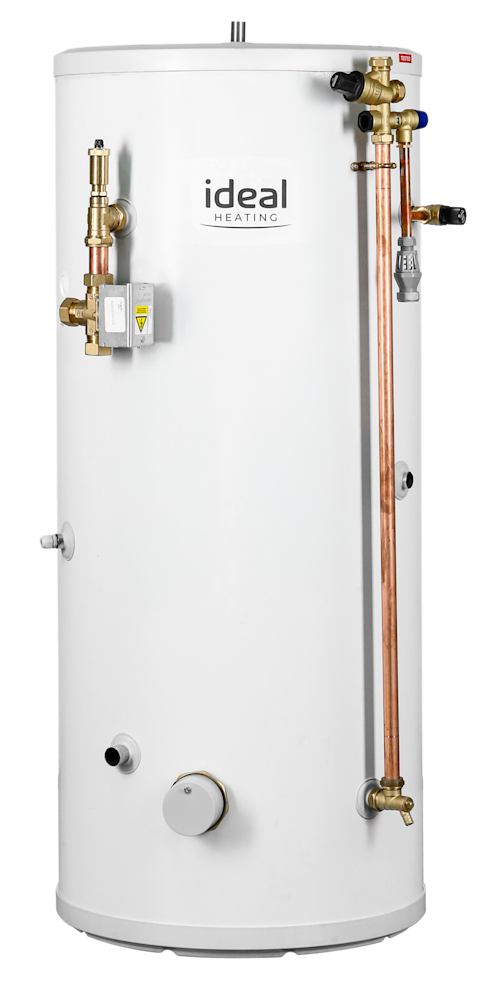

Pre Plumbed Lite DHW Cylinder

Question 1

Answer

Pre Plumbed Lite DHW Cylinder

		HEAT PUMP DHW PP LITE CYLINDER PP 150 SL 1Z	HEAT PUMP DHW PP LITE CYLINDER 180 SL 1Z	HEAT PUMP DHW PP LITE CYLINDER 180 1Z	HEAT PUMP DHW PP LITE CYLINDER 210 1Z	HEAT PUMP DHW PP LITE CYLINDER 250 1Z	HEAT PUMP DHW PP LITE CYLINDER 300 1Z
Ideal Product Code		246476	246478	246477	246479	246480	246481
Energy efficiency class		B	C	B	B	B	C
Heat Loss	watts/h	50	58	49	55	63	72
Heat Loss	kWh/24h	1.21	1.4	1.18	1.33	1.52	1.74
Capacity (DHW content)	litres	145	169	170	197	237	279
Weight empty	Kg	45	53	34	38	70	73
Weight full	Kg	192	222	212	235	300	352
Overall height	mm	1579	1851	1365	1475	1803	2049
Cylinder diameter	mm	475	475	550	550	550	550
Cylinder height	mm	1519	1791	1306	1494	1744	1990
Primary heat exchanger surface area	m²	1.8	3	2.5	2.5	3	3
Heat up time from 10°C to 50°C*	min	22.26	21.81	22.17	30.6	27.34	35.05
Immersion heater rating	kW	3	3	3	3	3	3
Secondary return connection	No/Yes	No	No	No	Yes	Yes	Yes
