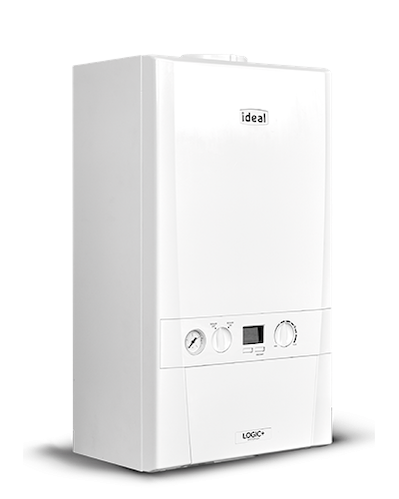

Logic System Boiler | Compact | Social Housing

Features & Benefits

Flexible warranty options*
Integrate connectivity to enable remote monitoring using Link Cellular
LPG conversion available
Large high-resolution screen
Six optional language user instructions
Compatible with the Halo thermostat range
Compact cupboard fit
Preformed copper tails with push-fit pressure relief valve (PRV) connection for quick and easy installation
Green filling loop handle to support tenant self-management for re-pressurising their systems
Easy access to the pressure relief valve
Three different service length options available up to 61 weeks
Built in frost protection

Warranty

Warranty available when registered within 30 days of installation and serviced annually. *Subject to Terms and Conditions.

20% Hydrogen

This Ideal domestic boiler is ready to run safely and efficiently on a 20% hydrogen blend with no technical adjustments, providing energy for heating and hot water with minimal disruption.

DESIGNED FOR THE UK CLIMATE
Large high-resolution screen
Compact cupboard fit
FLUE VARIANTS
NOX CLASS 6
HOT WATER IN SUNSHINE, RAIN, ICE AND SNOW
ERP COMPLIANT

Technical Specification

Available in outputs of 15, 18, 24 and 30kW

Logic System Models	15	18	24	30
Weight (Packaged) kg	31.3	31.3	31.3	31.3
Max Installation weight kg	27.3	27.3	27.3	27.3
CH Output(kW) min /max mean 70°C	4.8-15.0	4.8-18.0	4.8-24.2	6.1-30.3
CH Output(kW) min /max mean 40°C	5.1-15.9	5.1-19.1	5.1-25.6	6.4-31.0
SEDBUK rating (2005)%	91.2	91.1	91.2	91.1
SEDBUK rating (2009/2012)%	89.4	89.7	89.7	89.6
NOx Classification	Class 6	Class 6	Class 6	Class 6
LPG conversion	No	Yes	Yes	Yes
Max Horizontal flue	9m	9m	9m	8m
Max Vertical flue	7.7m	7.5m	7.5m	7.5m
Seasonal space heating efficiency class	A	A	A	A
Seasonal space heating energy efficiency µs %	93	93	94	93
Sound power level indoors LWA dB(A)	42	44	50	50
