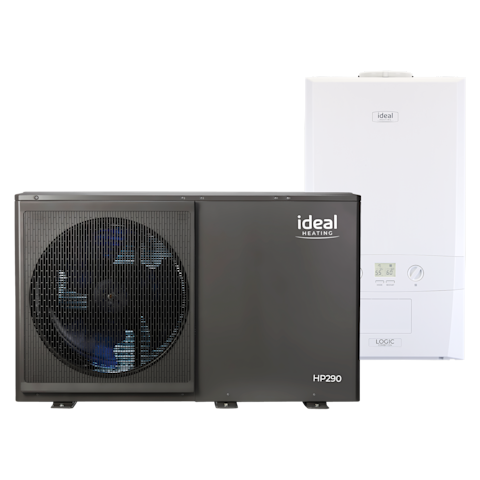

HP290 Hybrid Heat Pump
Choose the content that is relevant to you:
Description
The HP290 Hybrid system seamlessly combines our market-leading gas boiler range with the highly efficient HP290 monobloc air source heat pump. Designed for UK homes, this smart, integrated system is controlled from a single hub, providing the low-carbon, energy-efficient heating of a heat pump while ensuring the reliability and instant hot water of a gas Combi boiler, giving you peace of mind.
Features
- Integrated controller within the heat pump
- Tariff or bivalent control strategy
- Integration with Combi, System or Heat only boilers
- UK wide engineer coverage
2 year warranty
This product has a 2 year parts and labour warranty available when registered within 30 days of installation and serviced annually. Terms and Conditions apply.
Made in the UK
Our products are proudly made in the UK. Experience the quality and craftsmanship of skilled British workmanship.
How to buy
Let us recommend your nearest trusted local installer to assist you in the installation process.
Product Specification
HP290 Hybrid
HP290 4.5 kW
HP290 6 kW
HP290 8 kW
HP290 10 kW
Ideal Product Code
241486
241487
241488
241489
Heating [A 7°C / W 35°C]*
Capacity (kW)
4.5
6.2
10
12
Power Input (kW)
0.87
1.27
2.13
2.5
COP
5.15
4.9
4.7
4.8
Heating [A 7°C / W 55°C]*
Capacity (kW)
4.6
6.2
9.5
12
Power Input (kW)
1.44
2
3.12
3.87
COP
3.2
3.1
3.05
3.1
Sound Power Level (EN 12102 - 1)
dB(A)
56
58
61
65
Pipework Connection Sizes
Heating F/R
1" BSP
1" BSP
1 1/4" BSP
1 1/4" BSP
Dimensions Outdoor Unit (mm)
Width
1299
1299
1385
1385
Depth
426
426
523
523
Height
717
717
865
865
Volume (m3)
0.347
0.347
0.495
0.495
Weight (kg)
90
90
117
135
Electrical Data
Electrical Supply (50 Hz)
230v
230v
230v
230v
Phase
Single Phase
Single Phase
Single Phase
Single Phase
Refrigerant Charge (kg)*
R290
0.7
0.7
1.1
1.25
Logic Combi2
Product Code (C24/C30)
228307/228308
Max CH Output (C24/C30)
24.2/24.2
Min CH Output (C24/C30)
4.8/6.1
DHW Output (C24/C30)
24.2/30.2
SSHEE (C24/C30)
94/94
Boiler Dimensions (mm)
Width
395
Depth
278
Height
700
Hybrid Control
Strategy
Bivalent Point/Tariff
System Master
Heat Pump
PCDB Index Number
Model Name
35°C
55°C
HP290 4.5 kW + Generic
190064
190065
HP290 4.5 kW + Logic Combi2 C30
190066
190067
HP290 4.5 kW + Logic Combi2 C24
190068
190069
HP290 6 kW + Generic
190058
190059
HP290 6 kW + Logic Combi2 C30
190060
190061
HP290 6 kW + Logic Combi2 C24
190062
190063
HP290 8 kW + Generic
190052
190053
HP290 8 kW + Logic Combi2 C30
190054
190055
HP290 8 kW + Logic Combi2 C24
190056
190057
HP290 10 kW + Generic
190046
190047
HP290 10 kW + Logic Combi2 C30
190048
190049
HP290 10 kW + Logic Combi2 C24
190050
190051
Documents and resources for Homeowners
Need help with your product or control? Download our guides for more technical information on your product.
Installation & Servicing
HP290 Installation & Maintenance GuideSales Brochure
